Raymon FullRay 130E 5.0 Electric MTB Tektro M350 9S 500 Wh 29'' Grey 2024

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    The R Raymon FullRay 130E 5.0 is a high-end electric mountain bike with an aluminum frame.
    This mountain bike is designed for mountain bike enthusiasts who are looking for performance and a good riding experience.

    Product highlights:

    • 6061 carbon/alloy frame, integrated battery, Boost, 130 mm
    • SR Suntour XCM34 fork, 130 mm
    • Transmission Tektro M350, 1x9-speed
    • Hydraulic disc brakes Tektro HD-M280.

    Details:

    Frame Aluminum: 29", 6061 alloy, Integrated battery, Boost, 130 mm
    Fork SR Suntour XCM34 Boost LO, Spring, 130 mm, tapered
    Shock absorber SR Suntour Raidon R, Air, 210x55 mm
    Engine Yamaha PW-ST, 250 W, 70 Nm
    Battery Yamaha ML500, 500 Wh, 36 V
    Display Yamaha Display A, LCD screen, Micro-USB
    Gear shift lever Tektro SL-M350R
    Rear derailleur Tektro RD-M350, 9-speed
    Crankset Wheeltop, forged aluminum, JIS, R Raymon chainring, 38T
    Chain KMC e9S
    Sprocket set Tektro CS-M350, 11-46T
    Wheels Mach 1 650E, eyeleted, Tubeless Ready
    Hubs Front : R Raymon DA210F, 6 holes, 15x110 mm, Through axle / Rear: R Raymon DA210R, 6 holes, 12x148 mm, Through axle, HG
    Tires Continental Cross King, 58-622, 29x2.3
    Brakes Tektro HD-M280, 2 pistons, hydraulic disc brake
    Stem Raymon 31.8, 7 °, Ahead
    Handlebars Raymon Riser 31.8 mm, 780 mm, Sweep: 6 °, Rise: 15 mm
    Handles Raymon MTB, Screw-on grips
    Saddle Raymon MTB
    Seatpost Raymon, 31.6 mm, 350 mm, Patent
    Weight 24.7 kg
    Colors grey / black / new blue

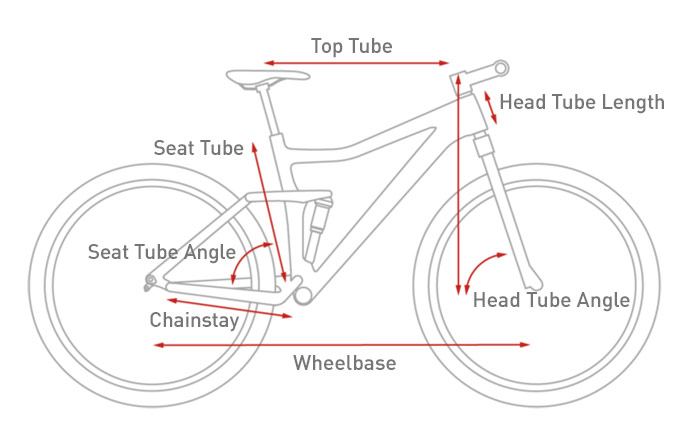

    Geometries :

    Frame size S M L
    Wheel size (inches) 29 29 29
    Seat tube (mm) 420 460 500
    Top tube (mm) 572 599 630
    Head tube (mm) 115 125 135
    Base length (mm) 475 475 475
    Turning angle (°) 66 66 66
    Seat tube angle (°) 75 75 75
    Wheelbase (mm) 1223 1252 1286
    Stack (mm) 615 625 634
    Reach (mm) 435 460 490

    MORE INFORMATION

    See the whole range of E-Bikes available.

    Features

    Gender Women
    Men
    Frame material Alloy
    Groupset Tektro M350
