Cube Stereo One77 C:68X TM 29 Sram GX Eagle 12V 29'' Mountain Bike Olive Green

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    It's hard to improve on perfection. But that's exactly what Cube engineers have achieved with the Stereo One77 C:68X frame. First of all, it's light at 2.3 kg. You can feel the difference on climbs and descents. It features a Flip-Chip and two mounting brackets for air or spring suspension systems, giving you a wide range of options in terms of shock progression and performance. Inserts allow you to go from a 63.8° to a 64.4° steering angle, and its bottom bracket is threaded for maximum versatility and durability. The engineers chose not to include any storage space in the Frame, as they wanted to reduce its weight as much as possible without compromising its strength. However, it does have a mounting bracket under the bottom tube for a repair kit. In short, you won't be missing a thing.

    The Cube Stereo One77 C:68X TM is ready for anything. With its lightweight frame made from high-quality C:68X® carbon and the depth of its Sram GX Eagle 1x12-speed drivetrain, it has the potential to make every climb easier. Again, with its RockShox Zeb Select+ fork and RockShox Super Deluxe Select+ Coil shock, Hayes Dominion A4 hydraulic disc brakes and Maxxis Assegai and Minion DHR II Tyres on Newmen Evolution wheels, it has more than enough potential to swallow any rough descent.

    Product advantages:

    • Light weight, dynamism and capacity to take a beating can go hand in hand: the Stereo One77 is proof of this.
    • C:68X® Advanced carbon construction with all-mountain suspension performance for perfect enduro and bike park riding.
    • Flip-Chip system for quick adjustment of rear suspension performance.
    • Adjustable headset for fine-tuning the steering angle.
    • Advanced Twin Mold C:68X carbon frame with 170 mm travel.
    • Sram GX Eagle 1x12-speed transmission.
    • Hayes Dominion A4 hydraulic disc brakes, 203/180 mm.

    Details :

    Frame Carbon: C:68X® Monocoque Advanced Twin Mold Technology, Air/Coil Shock Mount Flip-Chip, ISCG, Boost148, UDH™, 170 mm travel
    Fork RockShox ZEB Select+ RC2, Tapered, Boost 15x110 mm, 170 mm travel
    Shock absorber RockShox Super Deluxe Select+ Coil, 230x65 mm / Shock spacers: 40x8 mm (Top), 22.2x8 mm (Bottom)
    Derailleur lever Sram GX Eagle Trigger, 1x12-speed
    Rear derailleur Sram GX Eagle, 12-speed
    Cassette Sram XG-1275 Eagle, 10-52 Teeth
    Chain Sram SX Eagle
    Chain guide MRP SXg Chain Guide
    Crankset Sram GX Eagle Boost DUB, 30 Teeth
    Brakes Hayes Dominion A4, Hydr. Disc Brake, (203/180)
    Wheels Newmen Evolution SL A.30, 28/28 Spokes, Boost 15x110/12x148 mm, Tubeless Ready
    Tyres Front tires Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 29x2.5" WT / Rear: Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 29x2.4" WT
    Handlebars Race Face Turbine R 35, 800 mm
    Handlebars SDG Thrice
    Stem Race Face Turbine R 35
    Headset Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56 mm), Bottom Zero-Stack 1 1/2" (ZS 56 mm), Fiber Inserts for Angle Adjustment
    Saddle SDG Bel Air V3 Lux Alloy
    Seatpost SDG Tellis, Handlebar Lever, Internal Cable Routing, 31.6 mm
    Weight 15.1 kg
    Maximum weight 115 kg: maximum system weight includes bike, rider and equipment
    Colors olive'n'chrome
    Reference 656300

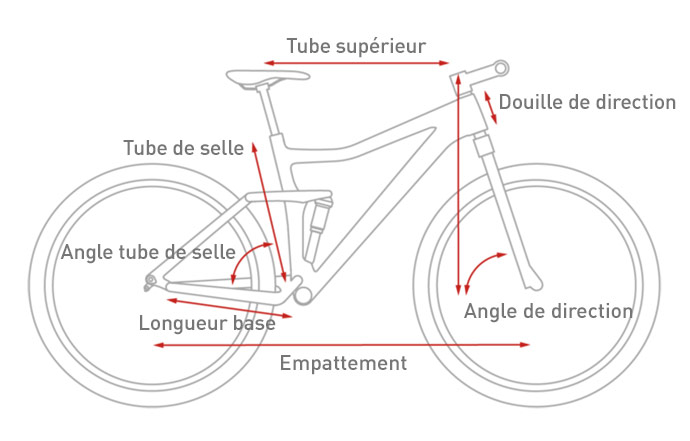

    Geometries :

    Frame size M L XL XXL
    Wheel size (inches) 29 29 29 29
    Seat tube (mm) 405 420 470 470
    Top tube* (mm) 589 / 591 610 / 611 633 / 635 659 / 661
    Base length (mm) 435 435 435 435
    Steering bushing (mm) 103 105 115 135
    Steering angle* (°) 63.8 / 64.4 63.8 / 64.4 63.8 / 64.4 63.8 / 64.4
    Seat tube angle* (°) 76.7 / 76.5 76.7 / 76.5 76.7 / 76.5 76.7 / 76.5
    Wheelbase* (mm) 1229 / 1222 1250 / 1242 1274 / 1267 1297 / 1289
    Stack* (mm) 626 / 627 627 / 629 636 / 638 654 / 656
    Reach* (mm) 452 / 450 472 / 470 492 / 490 512 / 510
    Stem length (mm) 40 40 50 50
    Seatpost length (mm) 440 480 480 480
    Seatpost travel (mm) 150 170 170 170

    *Depending on the position of the Flip-Chip system. The adjustable headset lets you fine-tune the steering angle. So you can perfectly adapt your bike to your preferences.

    Features

    Gender Men
    Frame material Carbon
    Groupset Sram GX Eagle
